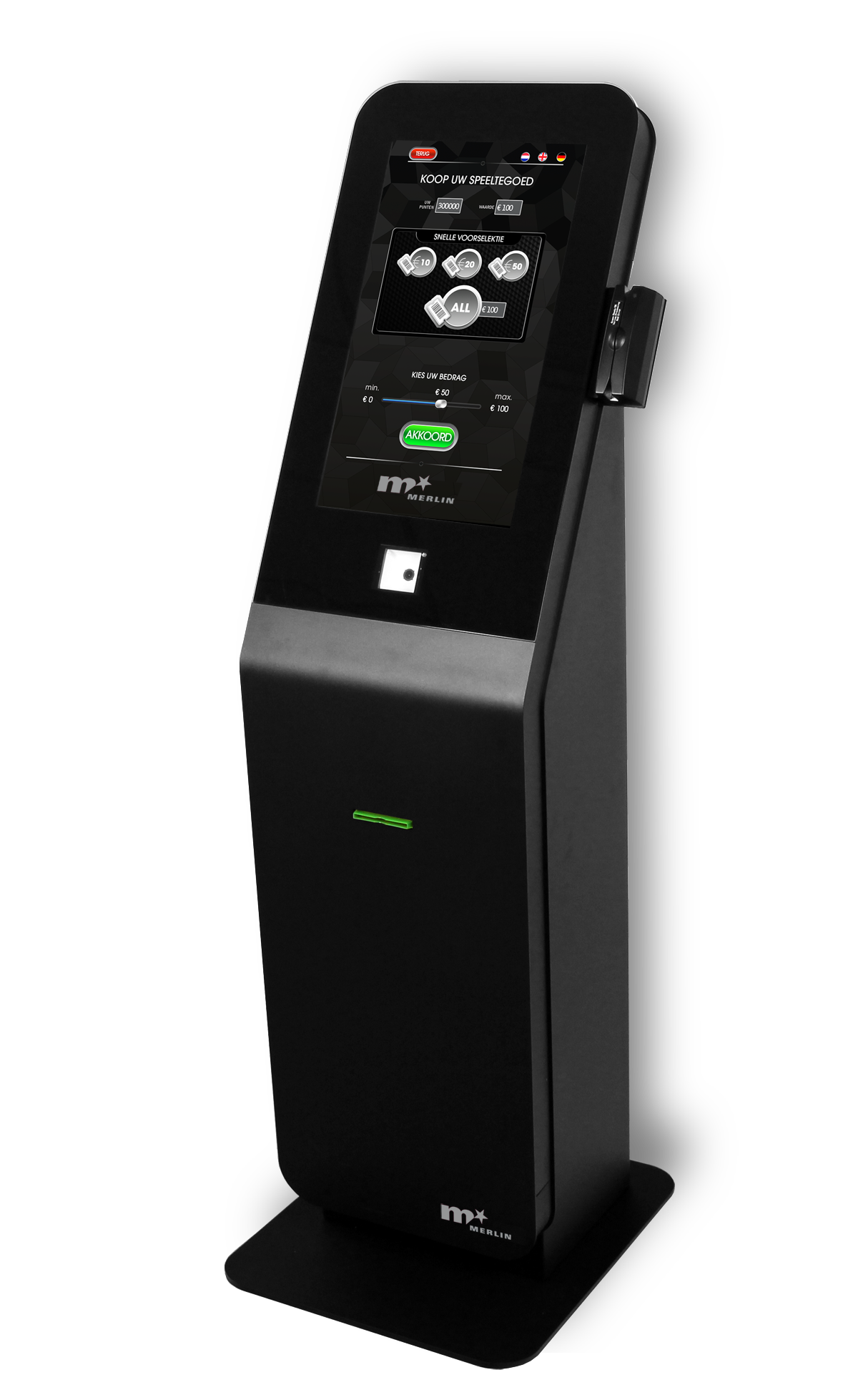

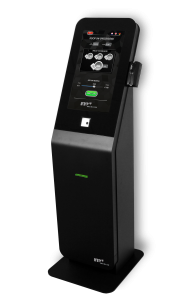

HC Kiosk


Self Service kiosk for ticket redeem

The Redemption solution can also be equipped with a banknote reader, pin-pad and coin hopper to make payments after which a ticket is printed to confirm that a payment has been made.

Payments can be made with both cash and card, change can be given in coins. Payment types can include, e.g. municipal offices for paying documents, which can then be collected with the ticket but also registrations for poker tournament bookings, cinema and theater tickets.

The possibilities also include the installation of a banknote dispenser with which two different banknotes can be issued. A Tito ticket can be offered (or 2D barcode) after which it is exchanged for cash.

Price on request Out of stock

  • Display 22 inch TFT with touchscreen
  • Printer Gen5 TITO Future Logic
  • Identification Confirmation on touchscreen
  • Card reader: Magnet stripe (in this example)
  • Barcode reader: Loyality card (in this example)
  • Hardware PC build-in
  • Connectivity: ethernet, option: 3G-modem
  • Digital security: encrypted SSD/transactions
  • optional: Build-in banknote reader, Pin-pad, Coin hopper for change, NFC reader for payment
  • dimensions: 1560 x 470 x 570 (HxWxD in mm)
  • weight: +/- 60 Kg
